CONNECT A DOCK FLOATING DOCK by PMI
Connect a dock

4' wide 8' long, 17" off the water. Unique chambered construction.
The deck never feels "spongy". 8' section wight about 230 lbs.

Connect a Dock Structure
 - Closely spaced ribs support the top. It’s never “spongy”.
  This gives the dock top a strong and stable feel.

 - Our dock is 1/4” thick plastic, durable, and puncture
   resistant.

 - Color is throughout. If you scratch it, it’s the same color.
 - With the unique design of the float bottom, air is trapped
 on the surface of the water for additional buoyancy.
connect a dock construction

Connect a dock floating dock assembly
It’s modular; you can develop whatever configuration you like. 8’ sections end to end.
4’ sections side by side. Finish off your dock with accessories like ramps, corners, & cleats.
Some people think of floating dock for installations in a spongy lake bottom. That’s where floating dock is often used but floating dock is sometimes more expensive than stationary dock. Our Sun Spot dock is priced comparable to ordinary dock with unique benefits. You don’t need to get into the water to set legs or a frame like you do for stationary dock. If it’s a rainy spring, your dock is never underwater. Our Sun Spot floating dock raises with the water level. For winter removal you just unbolt the connector brackets and pull the dock out one piece at a time. Our 4’ x 8’ sections weigh about 230 lbs. so you don’t need a dock installer with a barge to handle it.


clickhere Click here to view our Connect a Dock Floating Dock Image Gallery click here


HERE IS HOW IT GOES TOGETHER & WHAT IT COSTS

connect a dock floating dock section Connect a dock Connector Connect a Dock Pipe Connector
4' wide , 8' long, 20" tall,
Dock Section
$995
Connector - Connects
dock sections together.
$59.95
2" Pier Pipe Connector
For pier pipe into lake.
$69.95

You can figure out your configuration and price in a matter of minutes. Select the number of 8’ long dock sections you need. Add two connectors at each joint. Add pipe connectors (2) for every 16’ of dock. Estimating the depth of the water where the pier pipe will be used. Leave a couple feet above the top for water fluctuation.

connect a dock

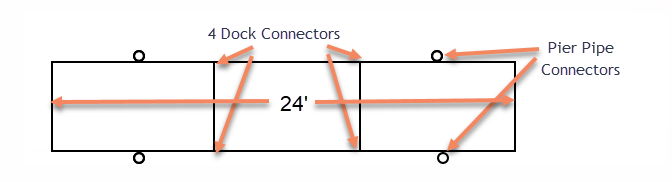

24’ dock section (3 pieces), 4 dock connectors, 4 Pipe connectors. $3504.60 Plus 4 pieces of pier pipe.
connect a dock floating dock plan
24’ dock section (5t pieces), 8’ long L, and 8 dock connectors, 4 Pipe connectors. $5734.40. Plus 4 pieces of pier pipe.
It’s modular. Anything you can design you can build.

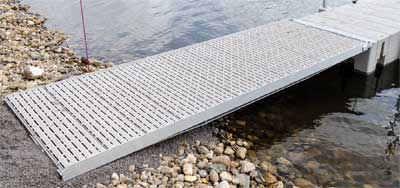

gangway plank for connect a dock floating dock

Add a gangway from land to the dock. 4’ wide by 8’ Long.
Comes with all hardware to connect to our dock.
$1250

Want to build your own ramp, ask about the hinge kit.

connect a dock floating dock corner Fill a corner 48" x 67" x 20" tall
Requires 4 dock connectors.
$59.95 each
connect a dock cleat
Cleats $19.95

floating dock pole
Pole Covers $29.95
 36” long with a hole for an (optional) rope. Dress up your dock, cover exposed pier pipe.

Our dock anchors to the lake bottom with ordinary pier pipe. You’ll need to estimate the depth of the water where the pier pipe will be used. Even on mucky bottoms there is usually a couple of spots along the entire dock body where the pipe can anchor. Leave a couple of feet above the surface if you have water fluctuation.

floating dock anchor pole Pier Pipe with auger and top turn bar. Measure lake depth.
- 8’ $49.95 each Pipe is not sold separate of floats
- 10’ $56.95 each Pipe is not sold separate of floats
- 12’ $64.95 each Pipe is not sold separate of floats
- Pier Pipe shipped with orders of new floats No additional shipping charges.

Prices shown reflect a discount for buying the pipe with the dock.
Specifications

Roto mold plastic construction, XXX side wall. - Eight Year Warranty.
Each 4’ x 8’ dock section can support about 2500 lbs. -  More capacity than needed.
Tan with wood grain textured appearance. - Anti-skid surface.
UV protected. - Will not fade or weaken from sun exposure.
Top deck is supported by a bracing folding up from the bottom. - Top is never spongy.
Impervious to salt water. - Won’t fade or deteriorate.
Hardware is stainless steel or galvanized. - No rust, ready for salt water.

Easy to Install

floating dock anchor
One of the hardest things to know when planning a new dock is what the lake bottom is like. There are few installations where the beach is flat and the bottom gently sloops out gradually. Some bottoms seem that way but a few feet out you discover the bottom drops off 3’-6’. Or there is a hole. Or a portion of your lakefront is sandy and firm while a few feet away it’s muck. This is one reason many lakefront homeowners leave the installation to professionals. There is always something that can go wrong. The lake bottom isn’t a consideration with our Sun Sport floating dock. You do need a couple of spots of good bottom for our pier pipes but they can be installed almost anywhere along the length of the dock.

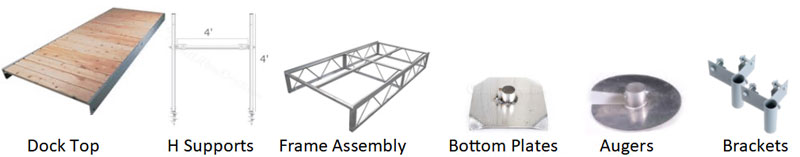

Our Competition

Our competition is stationary docks which often need to be professionally installed. Or you figure out all the parts and pieces and try to get it into the lake bottom properly. Other floating docks, some of which weigh as much as 400 lbs. per section which isn’t a job for most homeowners.
 floating dock parts

dock under water
Spring rains put this dock underwater.
plastic dock float tubs dock tubs
Tubs in a frame without a floor

HOW TO ORDER
Unlike many of websites this is not a true “e commerce” site. We want to talk with you  and assist or review your plans. We also want to positively calculate the best shipping rate to your location. Others may use a flat rate shipping quote but invariably some customers subsidize the shipping cost of others when the company just uses a formula for shipping costs.

There is nothing worse than ordering on line and discovering there is something you didn’t consider. Again, that’s why we want to talk with you. We have a staff of 5 customer service representatives that have assisted in hundred of dock installations. We can help review your needs, many customers email or fax a layout. We are happy to review it and send a firm written quote.
